CILIA Impulse relay Switch 4 sequences 2 NO, AC (50/60Hz), Standard, 230 V, Socket terminals.

Description （英语A+内容描述）

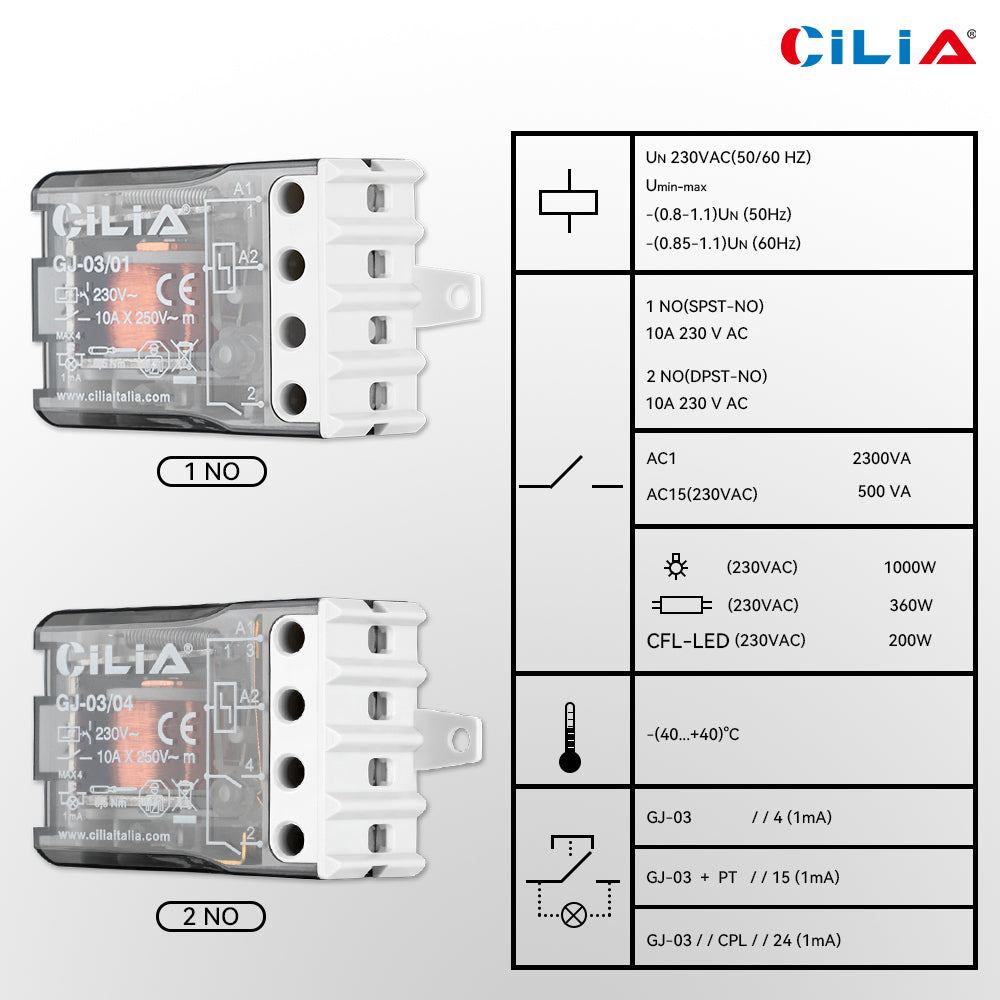

Characteristics:

· Impulse relay switch

· Contact Setup

· Single pole switch 1 NO

· Rated current (A) 10 A

· Rated/max. voltage (V) 110

· Rated load in AC1 (VA) 1100

· AgNi contact material

· Power supply voltage 230 V

· AC coil version (50/60 Hz)

· Electrical life at full load in AC1 (cycles) 100 103

· Ambient temperature (°C) -40…+40

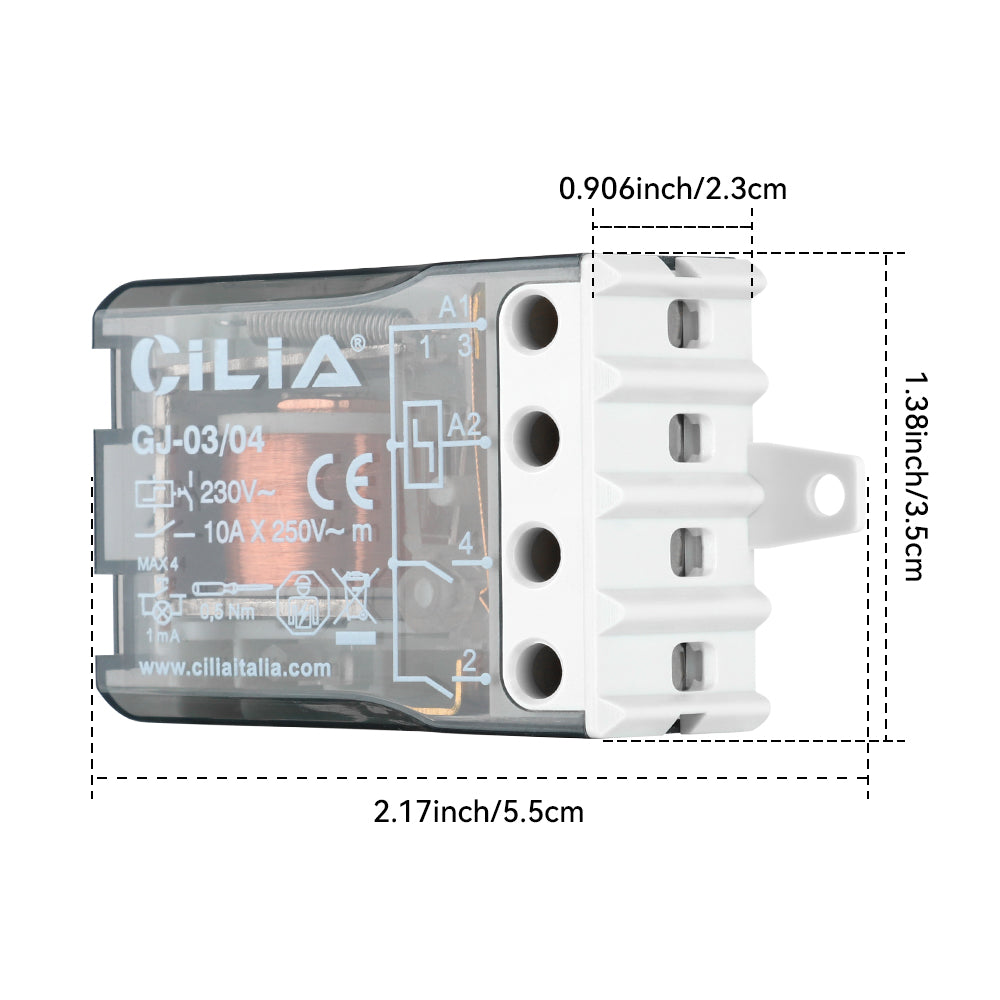

· Dimensions (mm) 32x21.5x47

· Approvals (depending on type): CE

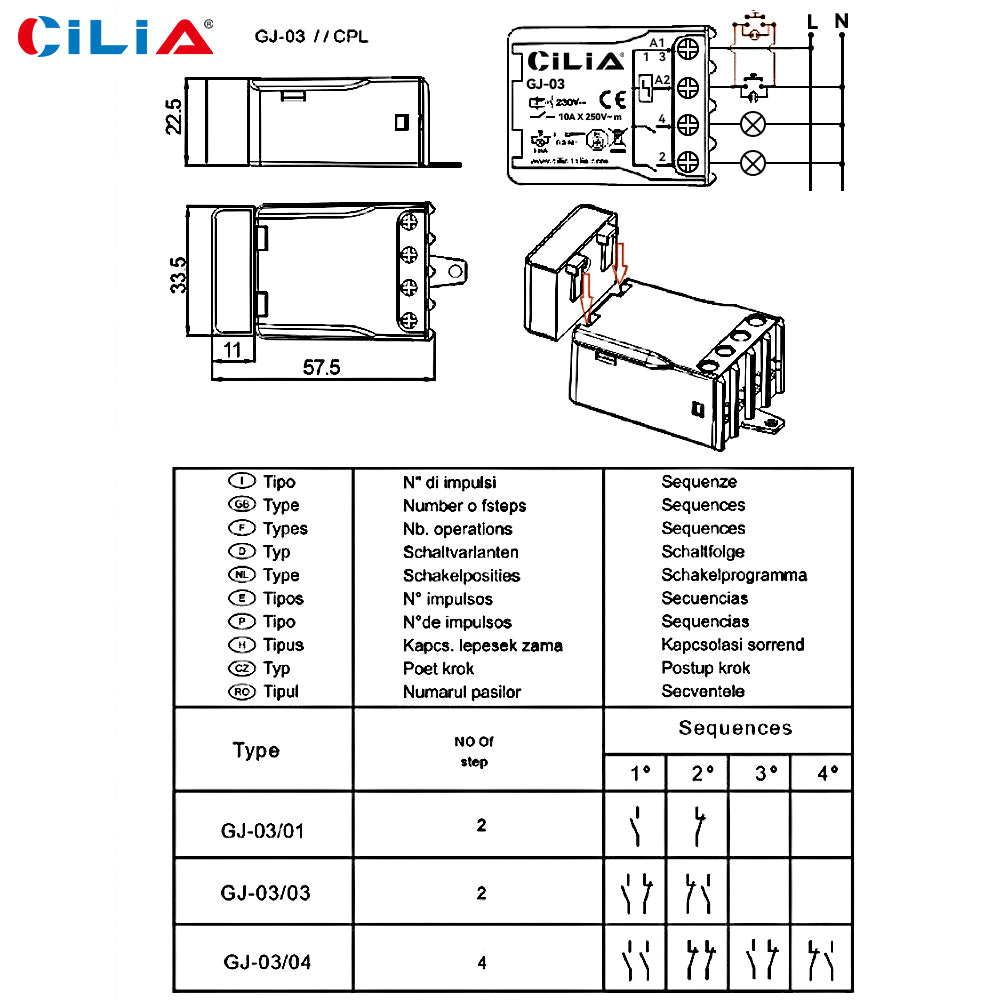

Technical data sheet

Type:

Impulse relay

Installation:

Cash in
